LX-9830G 恒流恒压电压降检测仪

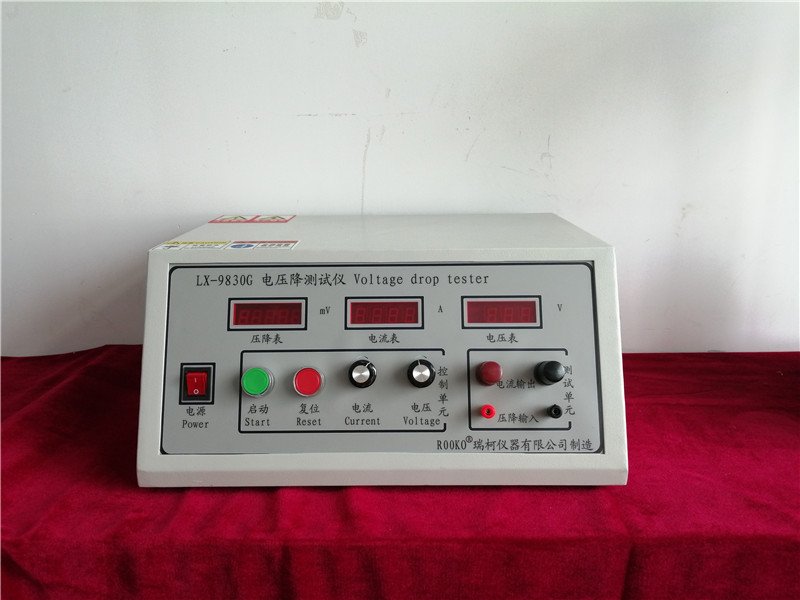

LX-9830G 恒流恒压电压降检测仪的图片
参考报价:
1-5万元
品牌:
瑞柯仪器
关注度:
1748
样本:
暂无
型号:
LX-9830G
产地:
浙江
信息完整度:
典型用户:
科研院
分散方式:
1
波长准确度:
1
仪器原理:
电阻式计数
色散单元:
1
重现性:
1
测量范围:
1
分辨率:
1%
测量时间:
60
灵敏度:
1
认证信息
金牌会员 第 4
名 称:宁波瑞柯伟业仪器有限公司
认 证:工商信息已核实
访问量:313353
手机网站
扫一扫,手机访问更轻松
产品分类
公司品牌
品牌传达企业理念
产品简介

LX-9831电压降测试系统

LX-9831 Voltage drop test system

一.概述Overview:

电压降、接触电阻、温升是车用电线束插接器在强电流电路和弱电流电路下电性能评定指标;集成电路芯片控制,恒流源供给输出,液晶显示,提供USB、232通讯接口;可外接控制单元;选购PC软件系统,分析电流、时间、温升、接触电阻和电压降变化曲线及数据模型;适用于科研院所、企业研发、进料检验和质量部门.

Voltage drop. contact resistance and temperature rise are the electrical performance evaluation indexes in the circuit of strong current circuit and weak current circuit.Integrated circuit and high-precision chip control. constant current supply output. LCD display. Provide USB. 232 communication interface.External control unit.Choose to buy PC software system. analyze current. time. temperature rise. contact resistance and voltage drop curve and data model. It is suitable for providing more accurate and reliable data assurance for technical departments such as research institute. enterprise R&D.

二.原理Principle:

通过电流、电压和时间,来检测电线束插接器电压降、接触电阻和温升变化关系,是汽车用插接器的电气性能指标.

Based on the current. voltage and time to detect Voltage drop of Electrical beam splitter .Relation between contact resistance and temperature rise change.

三.适用范围Scope of application:

用于电线束、插接器、开关触点、继电器、汽车开关等相关产品之接触电阻、温升、电压降或负载测量,同时也适用于具有类似特性产品使用.

Widely used in measuring contact resistance. temperature rise. voltage drop. or load of  electric wire beams. plug. switch contact. relays. automotive switch and other related products. Also is suitable for use with similar characteristics products.

四.参照标准Standards:

:QC/T 730 ;ISO 6722:2002  GB/T 2951; GB/T 3048; QC/T29106; QC/T413 ;QC/T413-2002;SAE/USCAR38 2009 .

五.参数资料: data

测量项目/ Measurement items

规格/ Technical specifications

分辨率

Accuracy

1.测试电流DC(选购

Test current(choose to buy)

0-60A

0-100A

0-200A

 -1000A

0.01A

2.测试电压(开路)

test voltage(open circuit)

DC0-30V

0.01V

3.电压降范围voltage drop range

0-1999.99mV

0.01mV

4. 测试时间test time

测试时间0.01S—99.99H

Test time 0.01S—99.99H

5.温升范围temperature rise range

常温-500度,精度0.5度

Normal temperature -500 degree,accuracy 0.5 degree.

6.接触电阻contact resistance

0.1μΩ—2KΩ.分辨率resolution 0.01μΩ

7. 统计功能Statistical function

统计计数:0-99999

Statistical count for good and bad products:0-99999

8. 测量模式Measurement mode

一般材料类和电线束类General materials and wire harness

7. 电压降设定

Voltage drop setting

上下限设定功能及声光报警

Upper and lower limit setting function and

8.设备管理Device Management

仪器管理密码设定,自我校准,数据管理。存储功能

Instrument Manager password settings. self-calibration. data management.storage function.

1.  校准分流器(选购)

Calibration shunt(choose to buy)

0.2级标准分流器75mv自我校准仪器,规格如下:1)60A.75mv;2)100A.75mv;3)200A.75mv;4)其他规格  0.2 standard shunt 75mv self-calibration instrument. specifications are as follows:

10.语言language

提供中文或英文两种供选择providing Chinese or English language versions available.

11.电源输入power supply

AC220V+10%;380V

12.环境要求

Environmental requirements

仪器使用环境要求Environmental requirements:工作温度:10℃-30℃,湿度:≤65%RH

13. 治具fixture

依据产品选购治具1付或者定制Choose to buy fixture 1 pay based on product or customized.

14.外部单元External unit

提供USB;232接口;选购:PC软件,电脑,打印机及其他控制单元Provide USB. 232 interface. choose to buy: PC software. computers. printers and other control units.
